Standardized warehouse board combination, large storage space, and display storage, with its equipment characteristics;
Electric heated glass door, super strong anti dew;
Extended lamp tube for better lighting effect;
The front warehouse shelves can be equipped with sliding tracks to arrange goods at any time;
Electronic control system, air-cooled ultra-thin evaporator, maximizing the utilization of warehouse area, etc.
- Product Parameters

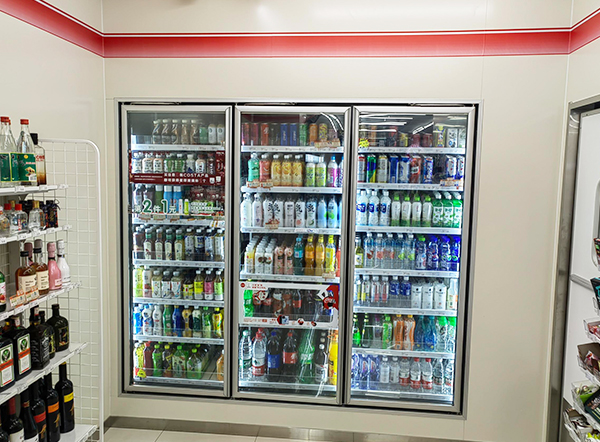

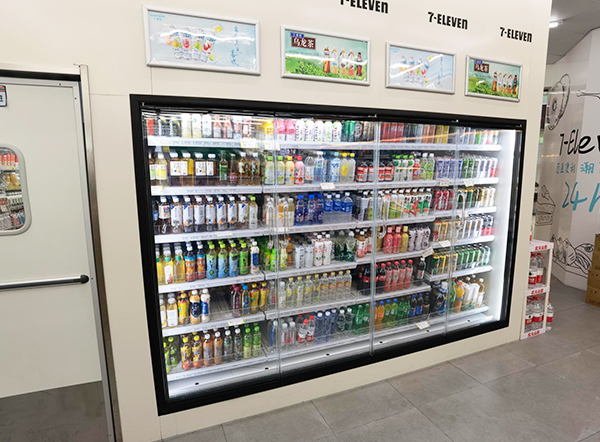

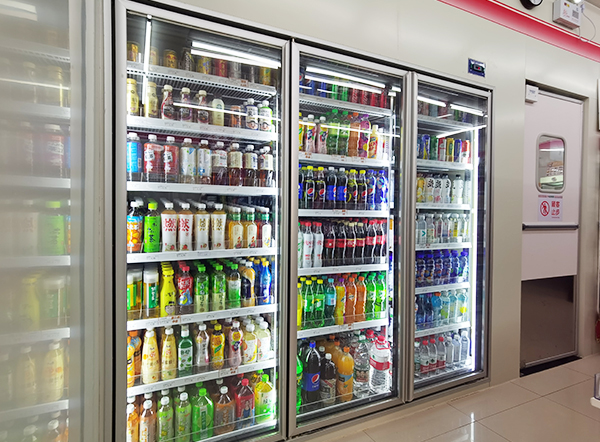

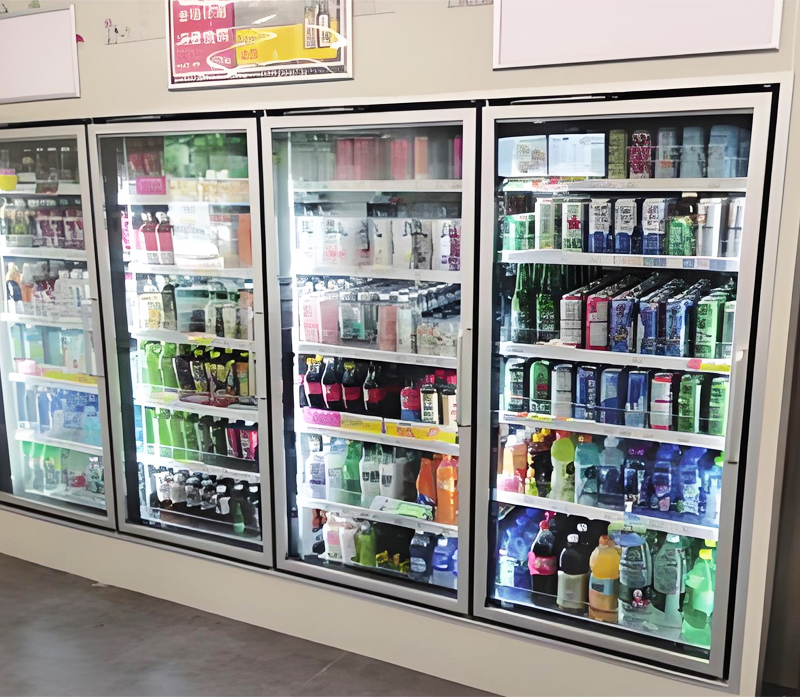

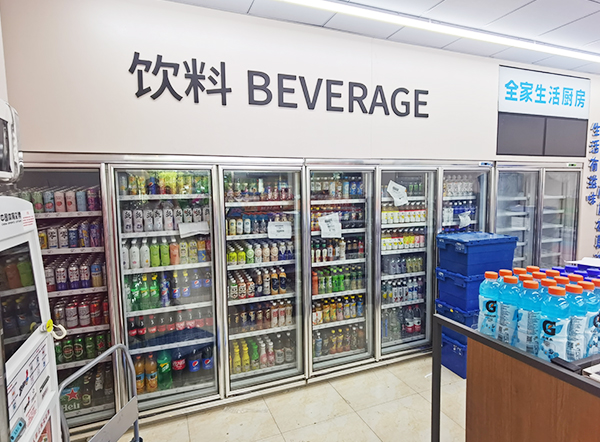

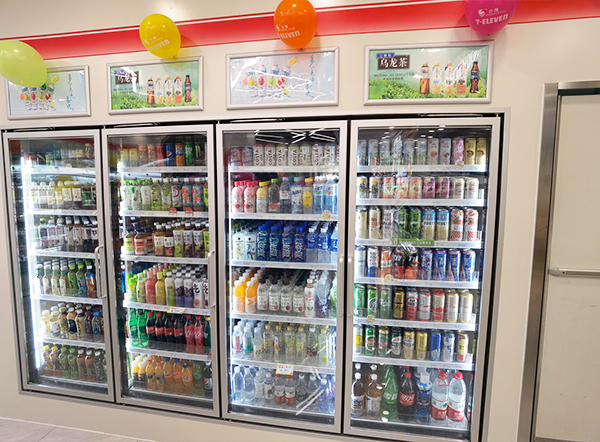

- Case
|
Classification |
Standard | Luxun | ||||
|
Model |
CBF-2220 | CBF-3020 | CBF-3720 | CBF-2220H | CBF-3020H | CBF-3720H |
|
Specification |
3-door |
4-door |
5-door |
3-door |
4-door |
5-door |
|
Length |
2288mm | 2998mm | 3710mm | 2288mm | 2998mm | 3710mm |
|
Width |
2000mm | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm |
|
Height |
2300mm | 2300mm | 2300mm | 2300mm | 2300mm | 2300mm |
|
Volume |
7680L | 10179L | 12699L | 12699L | 7680L | 10179L |
|
Door Size |
1780*680mm | 1780*680mm | 1780*680mm | 1780*680mm | 1780*700mm | 1780*700mm |
|
Number Products |
9-11 bottles/piece | 9-11 bottles/piece | 9-11 bottles/piece | 9-11 bottles/piece | 10-12 bottles/piece | 10-12 bottles/piece |
|
Ambient Temperature |
27°C | 27°C | 27°C | 27°C | 27°C | 27°C |
|
Temperature |
-1~7°C | -1~7°C | -1~7°C | -1~7°C | -1~7°C | -1~7°C |
|
Number of Shelves |
7 | 7 | 7 | 7 | 7 | 7 |
|
Refrigeration Method |
Air Cooling |
Air Cooling |
Air Cooling |
Air Cooling |
Air Cooling |
Air Cooling |
|
Temperature Control |
Electronic |
Electronic |
Electronic |
Electronic |
Electronic |
Electronic |
|
Door Anti-exposure Method |
Electric Heating |
Electric Heating |
Electric Heating |
Electric Heating |
Electric Heating |
Electric Heating |

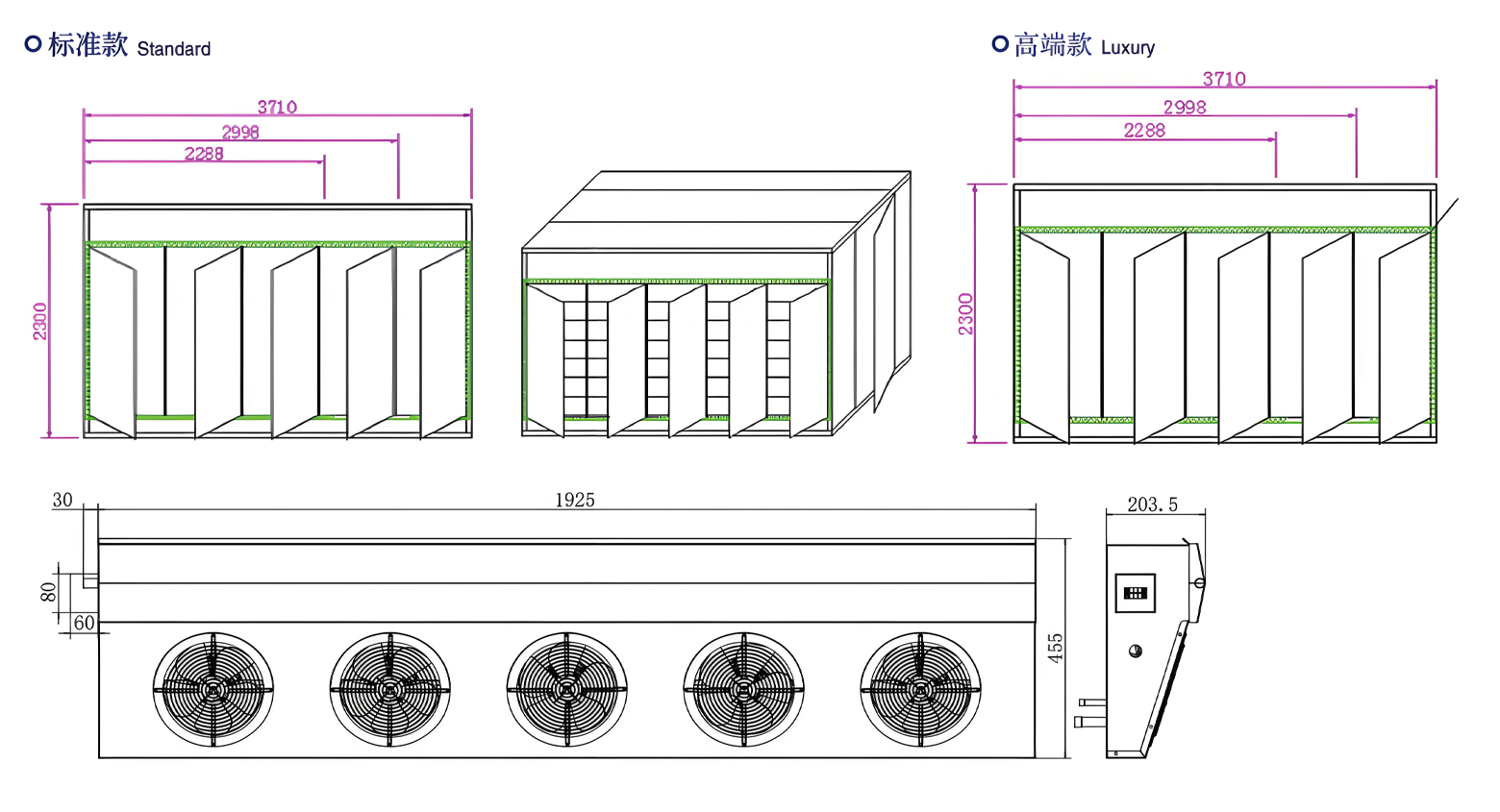

| Model | (L×W×H)/mm Dimensions |
Temperature Range/℃ | Volume/L | Display Area/m² | |
| Rear Air Supply Fan | CSF-2H | 875×455×203.5 | 1~10 | 240 | 1.4 |
| CSF-3H | 1365×455×203.5 | 1~10 | 430 | 1.95 | |
| CSF-4H | 1575×455×203.5 | 1~10 | 430 | 1.95 | |
| CSF-5H | 1925×455×203.5 | 1~10 | 430 | 1.95 | |
Product View
