Hook Type Coldroom Storage Panel
Product Advantages

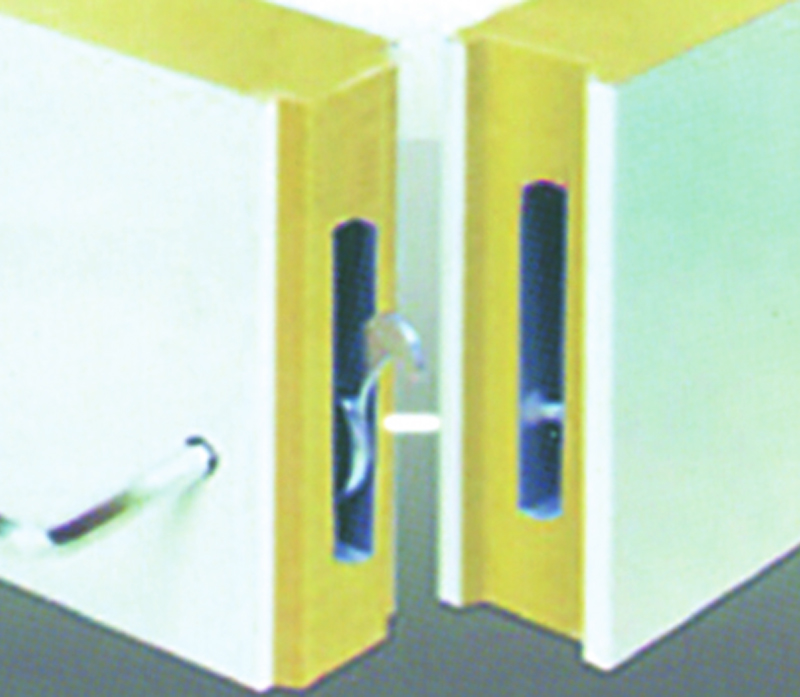

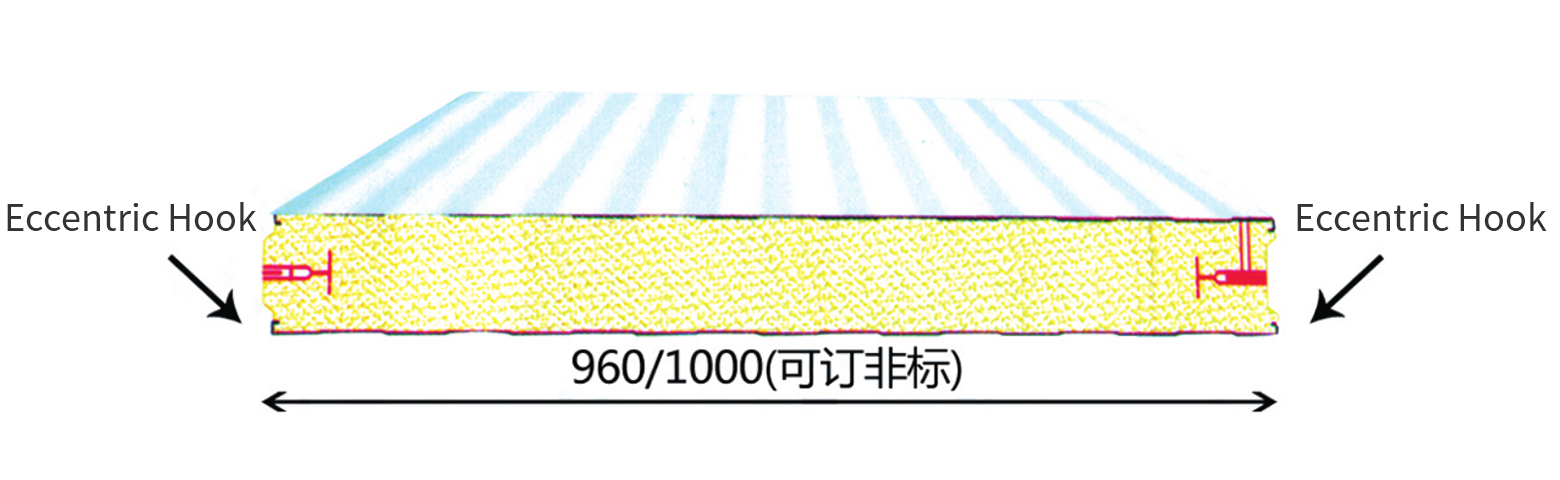

The eccentric hook locking link makes the installation of the storage board convenient and suitable for small-sized cold storage construction.
- Product Parameters
Product Parameters
|
Thickness of the Board/mm |
Temperature Difference/℃ |
Wall pPanel Height(Max)/m* |
Length of the Roof Panel(Max)/m** |
Applicable Temperature/℃ |
| 50 | 40 | 4.5 | 3.8 | 5~25 |
| 75 | 50 | 5.0 | 4.5 | -5~25 |
| 100 | 70 | 6.0 | 6.5 | -15~25 |
| 120 | 80 | 6.5 | 7.1 | -25~25 |
| 150 | 90 | 7.0 | 7.6 | -35~25 |
m*: No wind load under internal and external pressure difference and shrinkage stress. If it exceeds the length or there is wind load, steel wall beams need to be installed.
mm**: No wind load under internal and external pressure difference and shrinkage stress. If the length exceeds or there is dynamic load, steel wall beams need to be installed.
The above data is calculated based on a unit area heat flow rate of 8-10W/㎡.
