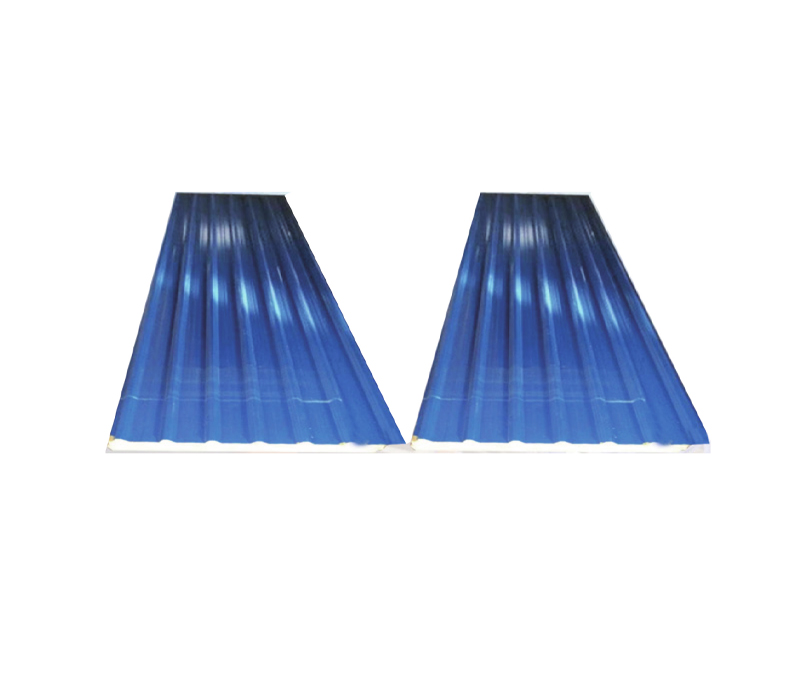

New-Type Eccentric Hook Corrugated pu roof panel, It is connected by eccentric hooks, suitable for cold storage roof panels, factory building roof panels, etc., and offers convenient installation. A color steel sheet locking structure is reserved between the panels to ensure sealing and impermeability. It boasts an attractive and graceful appearance, an elegant and innovative shape, rich colors, and strong decorative performance.
- Product Parameters
|
Thickness of the Board/mm |
Temperature Difference/℃ |
Wall pPanel Height(Max)/m* |
Length of the Roof Panel(Max)/m** |
Applicable Temperature/℃ |
| 75 | 40 | 4.5 | 3.8 | 5~25 |
| 100 | 50 | 5.0 | 4.5 | -5~25 |
| 150 | 70 | 6.0 | 6.5 | -15~25 |
| 180 | 80 | 6.5 | 7.1 | -25~25 |
| 200 | 90 | 7.0 | 7.6 | -35~25 |
m*: No wind load under internal and external pressure difference and shrinkage stress. If it exceeds the length or there is wind load, steel wall beams need to be installed.
mm**: No wind load under internal and external pressure difference and shrinkage stress. If it exceeds the length or has dynamic load, steel suspension beams need to be installed.
The above data is calculated based on a unit area heat flow rate of 8-10W/㎡.
