Plug-in Refrigerated Display Cabinet
Product Advantages

Adding air duct design effectively solves the impact of external humid and hot air on the temperature inside the refrigerator after opening the door, resulting in better performance;

Compared to the ice cream cone mother cabinet, the whole machine frozen glass door cabinet has a larger storage capacity and better display effect; Add acrylic partitions between doors, allowing customers to display and sell different products for each door, such as frozen foods like ice cream, ice cream, dumplings, etc;

The glass door adopts offline coating and double-layer LOW-E design, which saves more than 50% energy compared to conventional glass doors.

  • Product Parameters
Product Parameters

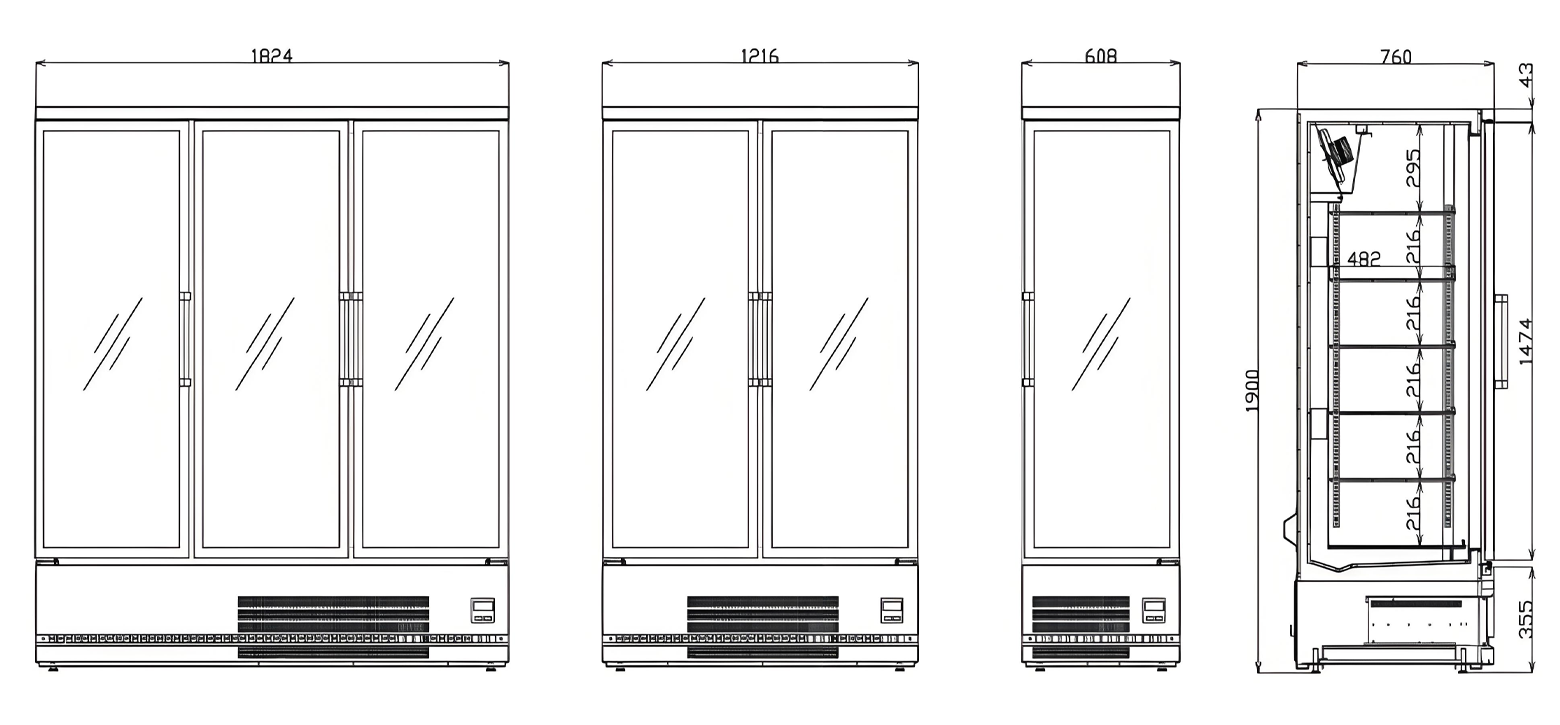

Plug-in Chiller



Model

Dimensions

(L×W×H)/mm

Temperature Range/℃ Volume/L Display Area/m²
CBY-0676CJ 608×760×1900 1~10 295 0.54
CBY-1276CJ 1216×760×1900 1~10 685 1.17
CBY-1876CJ 1824×760×1900 1~10 1065 1.76



Plug-in Freezer



Model

Dimensions

(L×W×H)/mm

Temperature Range/℃ Volume/L Display Area/m²
CBY-0857K 608×760×1900 ≤-18 260 0.54
CBY-0978K 1216×760×1900 ≤-18 610 1.17



Product View

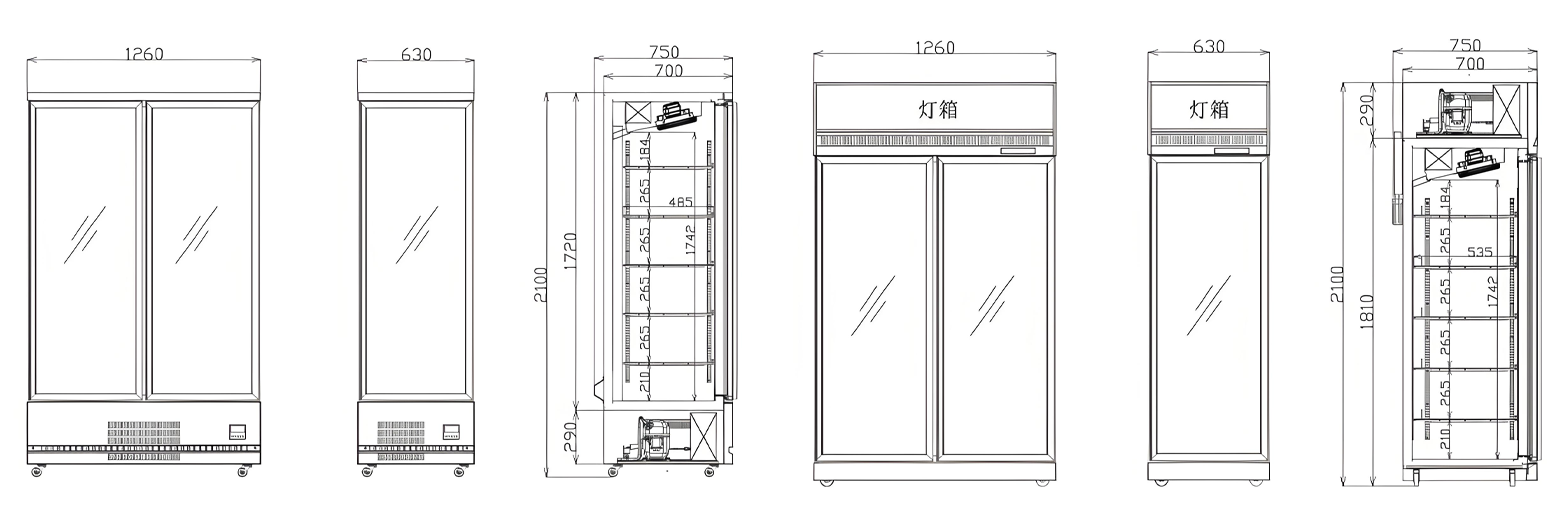

Plug-in Chiller



Model

Dimensions

(L×W×H)/mm

Temperature Range/℃ Volume/L Display Area/m²
CBY-0675CG 630×750×2100 1~10 420 0.8
CBY-1275CG 1260×750×2100 1~10 920 1.67
CBY-1875CG 1890×750×2100 1~10 1420 2.5
CBY-0675CTG 630×750×2100 1~10 420 0.82
CBY-1275CTG 1260×750×2100 1~10 920 1.71
CBY-1875CTG 1890×750×2100 1~10 1420 2.57



Plug-in Freezer



Model

Dimensions

(L×W×H)/mm

Temperature Range/℃ Volume/L Display Area/m²
CBY-0675DG 630×750×2100 ≤-18 420 0.8
CBY-1275DG 1260×750×2100 ≤-18 920 1.67
CBY-1875DG 1890×750×2100 ≤-18 1420 2.5
CBY-0675DTG 630×750×2100 ≤-18 420 0.82
CBY-1275DTG 1260×750×2100 ≤-18 920 1.71
CBY-1875DTG 1890×750×2100 ≤-18 1420 2.57



Product View
